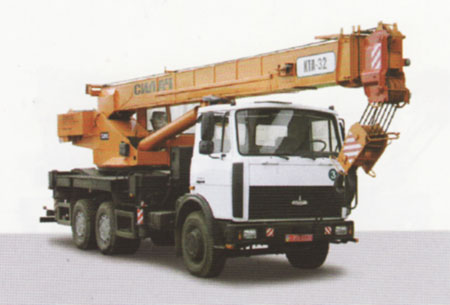

Autocrane KTA-32
| Base chassis: |
MA3-6303A3-347, MA3-630333-346 |
| Engine / Power, hp: |
ЯM3-6562.10/ 250, Deutz BF6M1013FC/286 |
| Gearbox (number of gears): |
ЯM3 2381 (8, ZF 9S109(9)) |
| max payload, t: |
32,0 |
| max rise, m: |
28,70 |
| boom, m: |
2,85-23,0 |
| arm long, m: |
9,7-29,5 |
| arm number sections: |
4 |
| Overall dimensions(LxWxH): |
12000x2500x3800 |
|
 |
 |
Car lift
| Base chassis: |
MA3-437043-341 |
| Engine / Power, hp: |
MM3 Д -245.30E3/ 155 |
| Gearbox (number of gears): |
CAA3-3206 (5) |
| Number of seats for workers team: |
3 |
| Rise, m: |
18 |
| max payload of cradle, kg: |
200 |
| Boom, m: |
13,5 |
| Rotate angle of boom, grad: |
+185(370°) |
| Gross weight: |
8000 |
| Overall dimensions(LxWxH): |
7200x2500x3500 |
|
|
 |

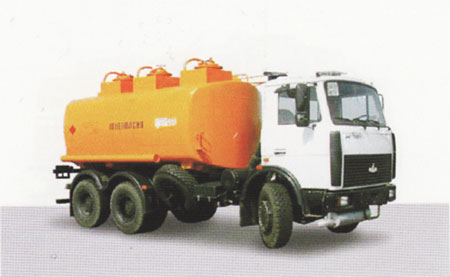

Tank truck for light oil product
| Base chassis: |
MA3-6303A5-340, MA3-6303A5-350, MA3-6303A8-343 |
| Engine / Power, hp: |
ЯM3-6582.10/330, ЯM3-6582.10/330,ЯM3-6581.10/400 |
| Gearbox (number of gears): |
ЯM3-2381 (8), ЯM3-2381 (8),ЯM3-239 (9) |
| Rated volume, m³: |
17 |
| Rated productivity of dump m³/h: |
21-45 |
| Tank material I section form: |
steel / trunk |
| Laden mass, kg: |
12560 |
| Gross weight: |
26500 |
| Overall dimensions(LxWxH): |
10200x2500x3200, 7900x2500x3200, 10200x2500x3200 |
|
|
 |

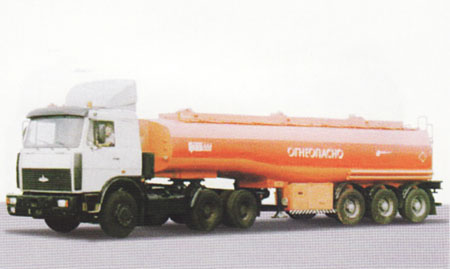

Semin trailer-tank for light oil
| Base chassis: |
MA3-938920-011 |
| Rated volume, m³: |
35 |
| Section number: |
3 |
| Tank material / section form: |
steel / trunk |
| Laden mass, kg: |
10750 |
| Gross weight: |
39000 |
| Overall dimensions(LxWxH): |
11300x2500x3200 |
|
|
 |

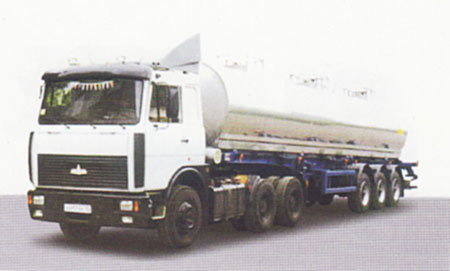

Food liquid semitrailer tanker
| Base chassis: |
MA3-991900-010 |
| Rated volume, m³: |
24 |
| Section number: |
3 |
| Tank material: |
stainless steel |
| Laden mass, kg: |
10000 |
| Gross weight: |
35000 |
| Overall dimensions(LxWxH): |
12500x2500x3400 |
|
|
 |

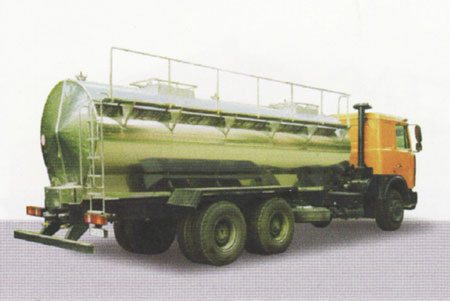

Food liquid tanker
| Base chassis: |
MA3-6303A5-340 (MA3-6303A5-350) |
| Engine / power, hp: |
ЯM3-6582.10/330 |
| Gearbox (number of gears): |
ЯM3-2381-02 (8) |
| Capacity, m³: |
12,0 |
| Number of sections: |
2 |
| Cistern material: |
stainless steel |
| Cistern laden mass, kg: |
12000 |
| Gross weight: |
24500 |
| Overall dimensions(LxWxH): |
9200x2500x3200 |
|
|
 |

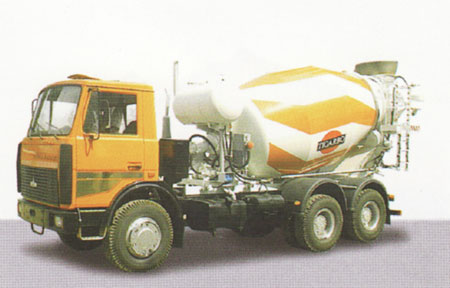

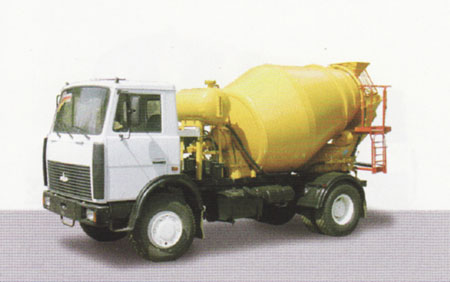

Truck mixer with drive from autonomous engine
| Base chassis: |
MA3-533702-246, MA3-5337A2-346 |
| Engine / power, hp: |
ЯM3-236HE2/230.ЯM3-6563.10/230 |
| Gearbox (number of gears): |
ЯM3-2361 (5) |
| Net volume of mixing drum, m³: |
4 |
| Water tank capacity: |
400 |
| Load height, mm: |
3500 |
| Gross weight: |
16000 |
|
|
 |
Truck mixer with drive from autonomous engine
| Base chassis: |
MA3-630305-250, MA3-6303A5-350 |
| Engine / power, hp: |
ЯM3-238ДE2 /330, ЯM3-6582.10 /330 |
| Gearbox (number of gears): |
ЯM3-2381 (8) |
| Net volume of mixing drum, m³: |
7 |
| Water tank capacity: |
800,850 |
| Load height, mm: |
3690 |
| Laden mass, kg: |
13850 |
| Gross weight: |
24700 |
| Overall dimensions(LxWxH): |
9570x2500x3700 |
|
|
 |

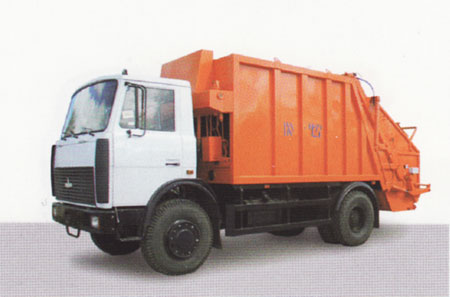

Garbage truck with rear unloading
| Base chassis: |
MA3-5337A2-348 |
MA3-533731-346 |
| Engine / Power, hp: |
ЯM3-6563.10/230 |
Deutz BF4M1013FC 1190 |
| Gearbox/number of gears: |
ЯM3-2361 (5) |
ZF 68850 (6) |
| Body volume, m³: |
16 |
16 |
| Mass of domestic waste, kg: |
6800 |
6800 |
| Tipping device payload, kg: |
500 |
500 |
| Gross weight: |
19000 |
19000 |
| Overall dimensions(LxWxH): |
8300x2550x3500 |
8300x2550x3500 |
|
|
 |

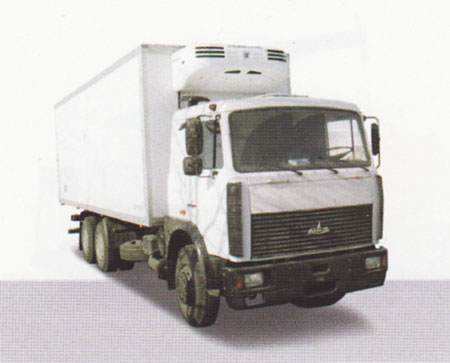

Isotherm van
| Base chassis: |
MA3-6303A5, MA3-6303A8 |
| Engine / power, hp: |
ЯM3-6582.10/330, ЯM3-6582.10/400 |
| Gearbox (number of gears): |
ЯM3-2381-02 (8), ЯM3-239 (9) |
| Payload, kg: |
14500 |
| (Body volume, m³: |
48,2 : 47,0 : 46,0 |
| (Body floor area, m²: |
19,2 : 19,2 : 19,0 |
| Gross weight: |
24500 |
| Overall dimensions(LxWxH): |
10310x2600x3995 |
|
|
 |
