Motor Grader-GS-25.11

TECHNICAL SPECIFICATIONS

Operating weight of base model with	Class 250
dozer blade , kg	22 950
Engine	ЯM3-236 БE 2-20
Engine power, kWt (h.p)	177/240
Gear box: "ZF", Germany	hydromechanical
Number of gears: forward / reverse	6/3
Traverse speed, km/h	4...40
Wheel arrangement	1x2x3
Dimension of tyres	16.00-24
Minimal radius of turn, m	8
GRADER BLADE:
Length of blade, mm	4 880
Height of blade, mm	800
. Depth of blade lowering, mm	600
Lateral shear relatively draft frame, mm	800
Slope flattening angle, degree	0-90

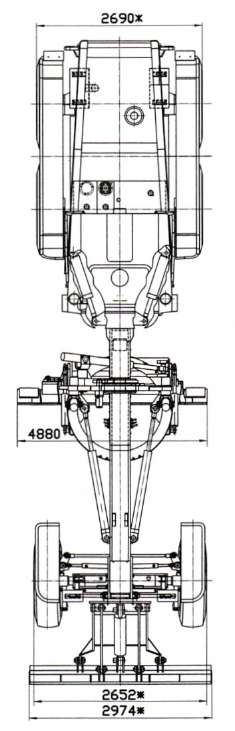

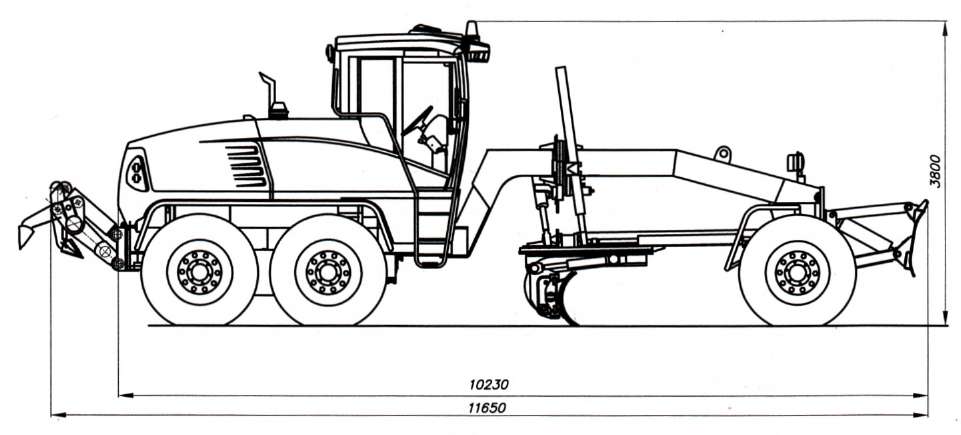

OVERALL DIMENSIONS:
Length with dozer blade, mm	10 230
Width by dozer blade, mm	2 974
Height, mm	3 800

• A hydromechanical transmission with automatic gearbox produced by "ZF", (Germany).
• Balance cart produced by "BRYANSKIY ARSENAL" on the basis of differential axle with positive locking ("ZF", Germany)
• Specially designed more powerful grader blade and rear ripper with increased width and depth of hoeing.
• Hydraulics with fixed-capacity and unloading. Dual circuit brake system with hydraulic amplifier of braking forces, with pressure equalization and reserve driving gear. Also it has hydraulic parking brake.
• Special tyres with high off-road capability and endurance.
• Modern cab design and interior. The cab provides the highest level of visibility, it has streamlined plastic roof and folding bonnet with gas dampers, windscreen blowing, combined extract and input ventilation, sliding doors, "Pilot" operator seat and adjustable steering column. Working elements' control is combined with distribution of working liquid flow by means of hand- and electrically operated hydraulic distributors, that are located in immediate proximity to executive mechanisms. This provides better coverage of the working zone. Heating of rear-view exterior mirrors.
• Articulated frame provides minimal turning radius of the motor grader.
• Additional working equipment: rear ripper
