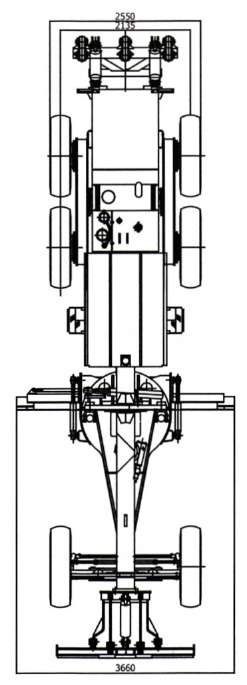

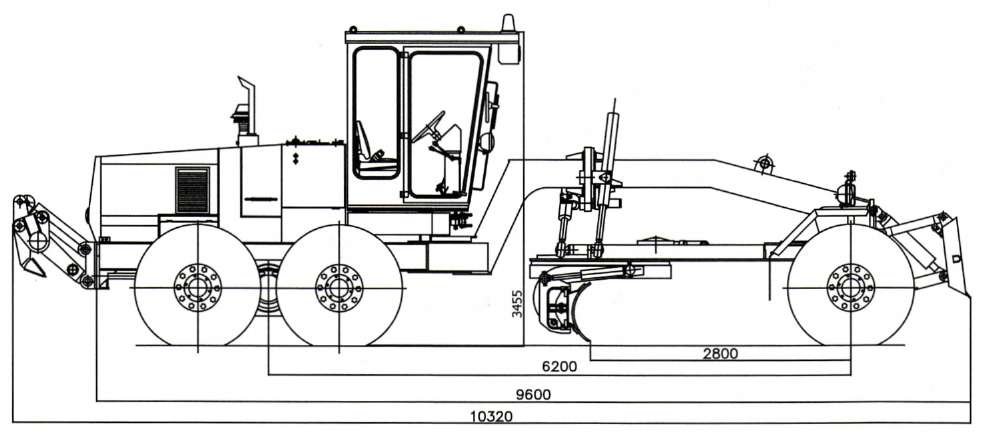

Motor Grader-GS-18.05

TECHNICAL SPECIFICATIONS

Operating weight, kg 15 800
Length with mountingequipment 10 860
Width, mm 2 550
Height including cab, mm 3 455
Height including flashlight, mm 3 580
Base, mm 6 200
Minimal radius of turn, m 8
Speed, km/h 3,2...40
MOLDBOARD:
Length of blade, mm 3 660 (4 200)
Height of blade, mm 630
Lift above ground, mm 450
Max. shoulder reach, mm 700
Slope cutting angle, degree 0-90
MOTOR GRADER UNIT STRUCTURE
Engine ЯM3-236Д-4
Eng.power, kwt 130
Power density, kwt/t 7,88
Torque 667
Gear- box mechanical
Number of gears:forward/reverse 12/4
Gimbal gear 1 coupling
Front axle driven
Rear axle drive
Dimension of tires 14.00-24
Wheel formula 1x2x3


  • The motor grader is fitted with service, stand-by and parking brake systems. Stand-by brake system allows the motor grader to make at least five brakings when its engine choked or pumps are out of order.
  • Working members operation is manual combined distributing working fluid flow by electric hydraulic control valves fitted close to final-control devices to provide better visibility.
  • Gear box hydraulic tightening couplings, providing gears changing within the limits of a range without breaking the power stream- "Power Shift".
  • Rear axle is self-locking, with free stroke differential "NOU SPIN". Articulated frame and rotary grader blade allow wide road coverage, effectively using bulldozer blade, grader blade and over replaceable equipment.
  • By customers special order the cab can be fitted with air conditioner, "Pilot" operator seat and system of automatic control of working bodies "Moba" (Germany).
  • Additional equipment: rotary bulldozer blade, rear mounted ripper, ripper scarifier in the base of motor grade, lateral equipment.
