Asphalt Paver ASF-K-2-04

TECHNICAL SPECIFICATIONS

Productivity, t/h	up to 350
Width of paving, m	2,5...4,5(stepless)
Thickness of paving, mm	up to 250
Batcher capacity with a tunnel, t	10
SPEED:
Working speed, m/min	up to 20
Transport speed, km/h	up to 18
Rammings beams beat frequency,Hz	30

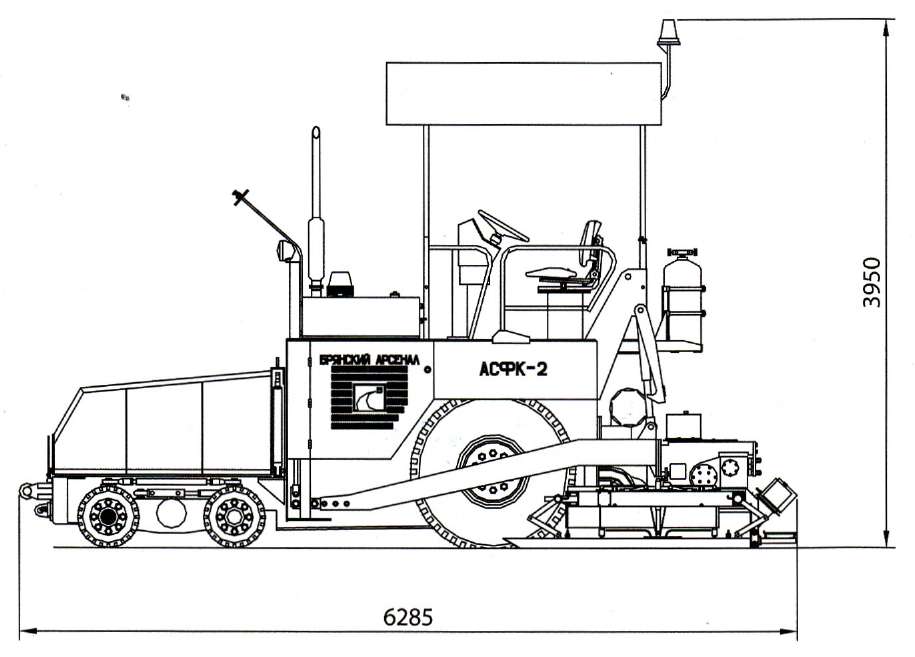

General dimensions,mm:
Length	6 285
Width: In working position	3 120
Width: In transport position	2 530 without flanges
Height: With raised awning	3 950
Height: With lowered awning	3 100
Weight, kg	14 500
ASPHALT PAVER UNIT STRUCTURE
Engine Type	diesel
Model	D 245
Power, kwt	77,2

• To improve the operator working conditions, the asphalt paver is fitted with a rotary control panel, allowing to operate the machine from any machine side.
• The asphalt paver serial is fitted with control-diagnostic system supervising 15 parameters of hydrosystem and the engine.
• For maintenance of high purity of the working liquid of hydrosystem all pipelines are made of stainless steel.
• As power hydraulic equipment on the asphalt paver the import hydroequipment is established.
• The tool of asphalt paver ASF-K-3-02 is executed on telescopic cylinders, with "rigidity" of the tool providing the greatest possible accuracy of asphalt-concrete mixture paving.
• Reversible feeders and auger have a separate onboard drive. The feeder drive are controlled, and the auger drive are with discrete electro controll and function manually as well as automatically.
• The driving mechanism of asphalt paver is fitted with the adjustable hydropump and the hydroengine so as to make optimal speed selection easier for the operator.
• Additional equipment: automatic system used for control of asphalt smoothing platform position, gas heating system for asphalt smoothing platform, replaceable fusions.
